Galvanized Load-bearing Grated Manhole Cover for Outdoor Road

The galvanized grated manhole cover is manufactured from welded steel bar grating and a supporting metal frame. Parallel bearing bars transfer applied loads to the frame, while cross bars maintain spacing and stabilize the grating structure.

Unlike a solid access cover, the open-grid design allows rainwater, surface runoff and debris of suitable size to pass through. This makes the steel grating cover suitable for drainage pits, catch basins, utility openings and outdoor access chambers.

Hot-dip galvanizing creates a protective zinc coating over the fabricated steel cover and frame. Serrated bearing bars can be selected when additional surface grip is required.

Square, rectangular and customized cover shapes are available. Hinges, lifting handles, locking bolts and anti-theft fittings can also be added according to the maintenance and access requirements.

Engineered Load-Bearing Structure

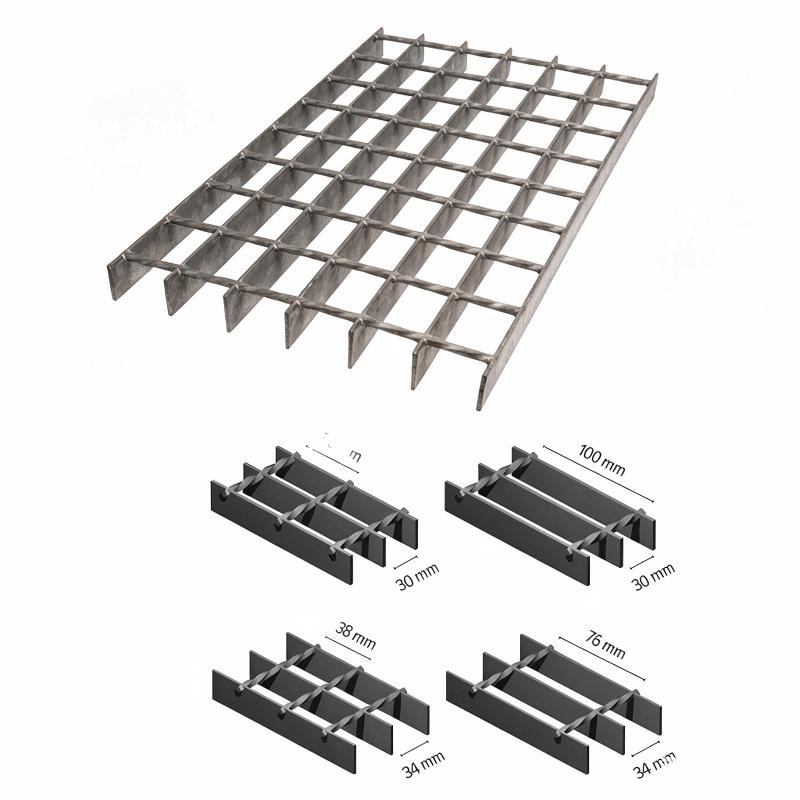

Bearing bar depth, thickness, spacing and span can be selected according to the required load and supporting conditions.

Efficient Surface Drainage

The open steel grating allows water to flow into the drainage system, helping reduce surface water accumulation around roads and paved areas.

Hot-Dip Galvanized Protection

Galvanization protects the carbon steel structure against rust and outdoor moisture, supporting use in exposed drainage environments.

Optional Anti-Slip Surface

Serrated bearing bars can provide additional grip in wet or frequently accessed locations.

Matching Support Frame

The fabricated frame provides continuous bearing support and helps distribute loads from the grating cover into the surrounding structure.

Convenient Maintenance Access

Hinged or removable designs allow maintenance personnel to access drainage pits, utility chambers and underground services.

Custom Security Features

Locks, bolts, hinges and concealed lifting points can be incorporated to reduce unauthorized opening or removal.

Outdoor Roads

Project-specified load-bearing grating covers can be used over drainage or utility openings in suitable road locations after engineering verification.

Parking Areas

Galvanized steel covers provide drainage and maintenance access around car parks, garages and vehicle entrances.

Industrial Facilities

Heavy-duty steel grating covers are suitable for factory roads, equipment areas, wastewater systems and utility chambers.

Municipal Drainage Systems

The open-grid cover can be installed over catch basins, drainage pits and surface-water collection points.

Warehouses and Logistics Sites

Load-bearing access covers can serve paved yards, loading areas and internal traffic routes when correctly specified.

Parks and Public Spaces

Close-mesh or project-specific grating can cover drainage openings along paved walkways and landscaped public areas.

Utility Access Chambers

Removable or hinged covers provide access to underground cables, pipes, valves and other municipal services.

As a professional guardrail manufacturer, we support size, shape & drawing customization with full-process in-house production. Our complete supporting services are listed below:

Frequently Asked Questions

How is the load capacity determined?

Load capacity depends on the bearing bar dimensions, spacing, clear span, steel grade, frame support and applied load. These details must be calculated for the specific project.

Can this grating cover be installed on a vehicle road?

It can only be used in a vehicular area when its design and test results satisfy the required road load class and installation standard.

What is the difference between plain and serrated grating?

Plain grating uses smooth bearing bars. Serrated grating has notched upper edges that provide additional grip in wet or slippery environments.

Does the manhole cover include a frame?

A matching steel support frame can be supplied with the grating cover. The frame dimensions should match the opening and surrounding structure.

Can hinges and locks be added?

Yes. Hinges, locking bolts, retaining chains and lifting handles can be incorporated according to the access and security requirements.

What information is needed for a quotation?

Please provide the clear opening size, cover dimensions, bearing direction, support method, expected wheel or distributed load, required standard, surface type and finish.
