Product Description

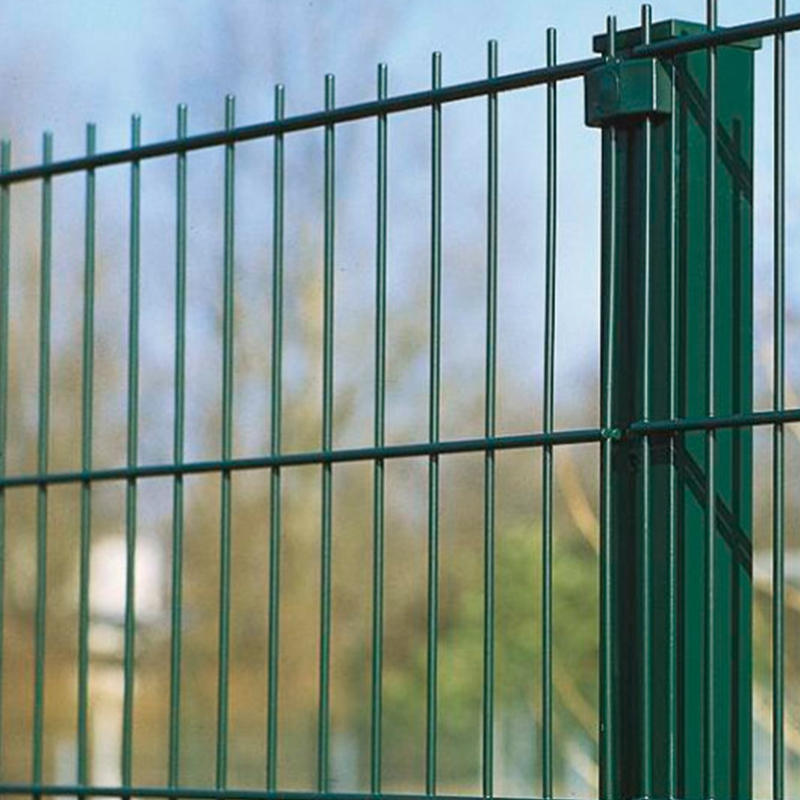

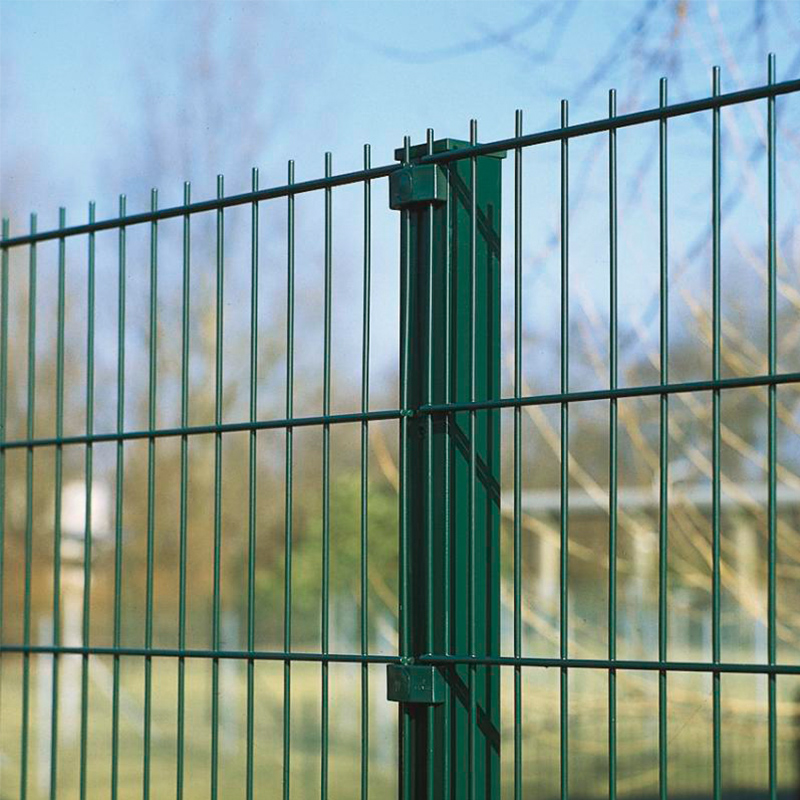

The double wire mesh fence is manufactured with two horizontal steel wires welded on both sides of a single vertical wire. This reinforced structure creates a rigid fence panel with strong resistance to bending and deformation.
Also known as a twin wire fence, the system is commonly available in 656 and 868 configurations. A 656 fence panel uses two 6 mm horizontal wires and one 5 mm vertical wire, while an 868 panel uses two 8 mm horizontal wires and one 6 mm vertical wire.
The open welded mesh design maintains clear visibility through the fence line while creating a strong perimeter boundary. Galvanized, powder-coated and PVC-coated surface options are available for corrosion resistance and different architectural requirements.
Double wire fence panels can be supplied with square or rectangular posts, clips, clamp bars, bolts, post caps and matching pedestrian or vehicle gates.
Product Advantages
Two horizontal wires are welded on both sides of each vertical wire. This twin wire configuration improves panel rigidity and helps the fence resist bending and impact.
The 656 double wire fence provides a practical balance of strength and material weight, while the heavier 868 fence is available for projects requiring greater panel rigidity.
The open mesh structure maintains sightlines through the fence, supporting surveillance and visibility around schools, sports areas, industrial facilities and commercial properties.
Galvanization protects the steel wire against rust and outdoor moisture. Powder coating or PVC coating can provide additional surface protection and customized color.

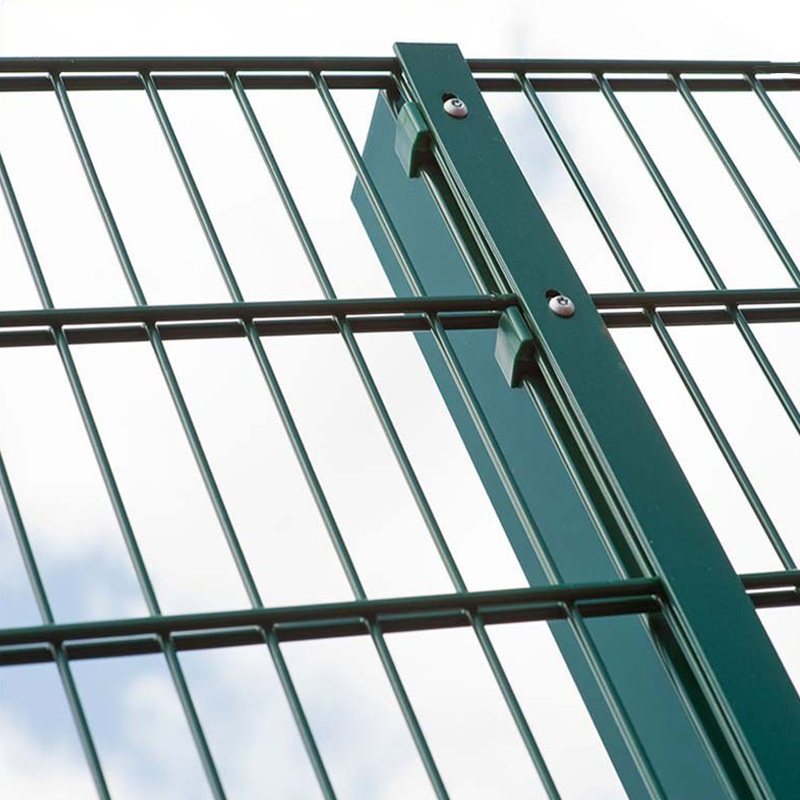

Prefabricated twin wire mesh panels can be fixed to matching posts with clips, brackets or continuous clamp bars, simplifying installation and replacement.
Unlike V-bend mesh panels, the double wire fence has a flat surface and straight lines, creating a neat appearance for modern perimeter projects.
Panels, posts, fixings, post caps, pedestrian gates and vehicle gates can be supplied as a coordinated fencing package.
Technical Parameters
Product Type | Security Fence,Perimeter Fence,Industrial Fence |
Material | Low Carbon Steel Wire,Hot-Dip Galvanized Steel Wire |
Mesh Opening Size | 25×200mm，50×100mm，50×150mm，50×200mm，55×200mm |
Panel Height | 630mm，830mm，1030mm，1230mm，1430mm，1530mm |
Panel Width | 2500mm，2510mm，1910mm |
Customization Method | Custom per drawing,Custom per sample |
Application Scenario
The double wire mesh fence can define boundaries around schools, colleges, playgrounds and outdoor activity areas while maintaining visibility.

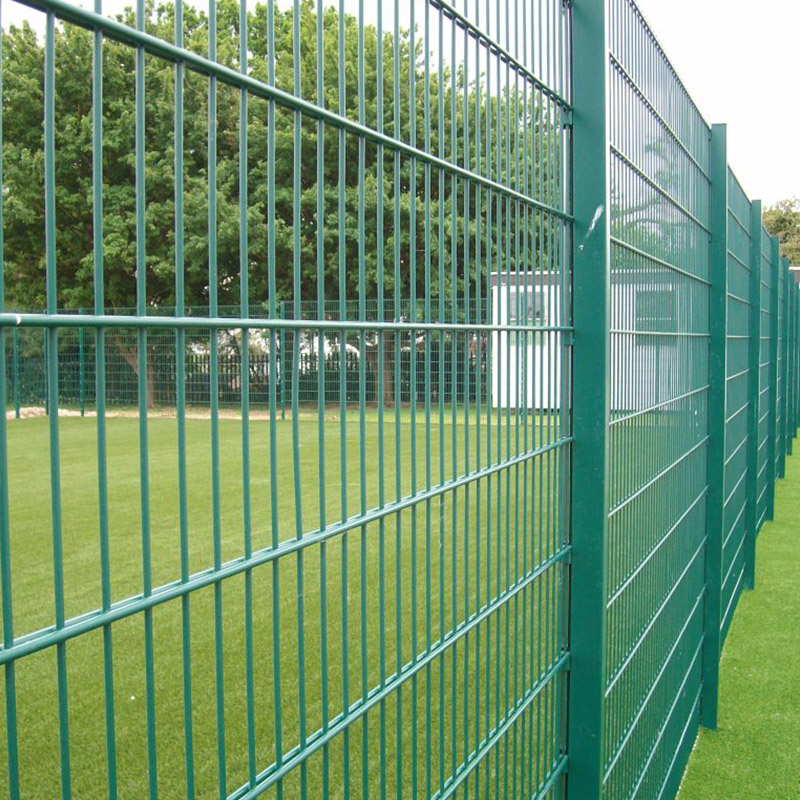

Rigid twin wire fence panels are suitable for tennis courts, ball courts, training grounds and other sports facilities.
The fence can protect factory boundaries, equipment areas, logistics centers, warehouses and industrial parks.

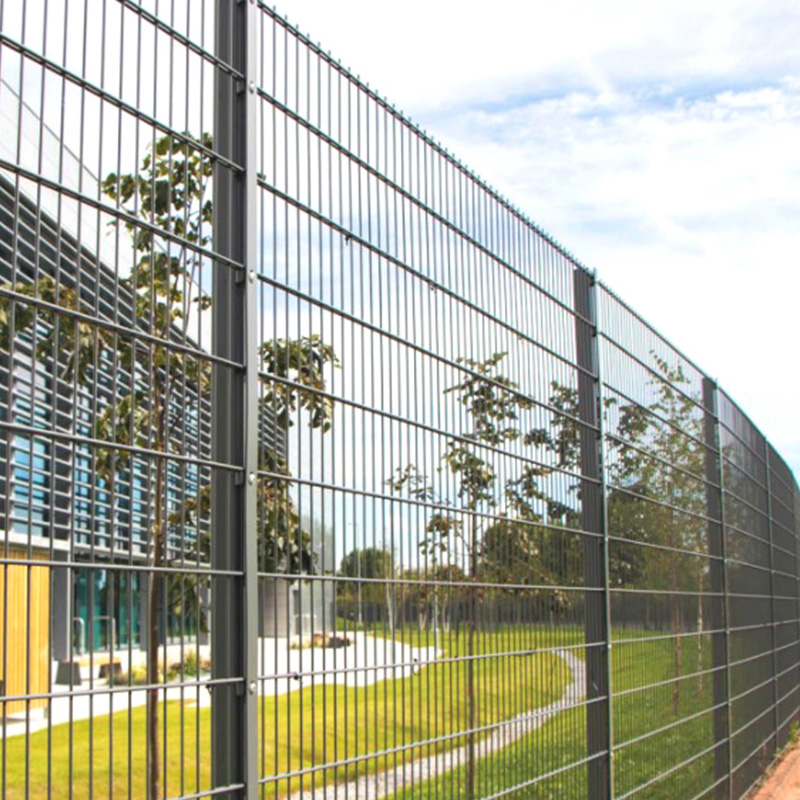

Double wire fencing provides a neat and durable perimeter for office buildings, retail facilities, parking areas and storage sites.
The open mesh design makes the fence suitable for public parks, recreational areas, community facilities and landscaped spaces.
Powder-coated double wire panels can be installed around apartment grounds, shared gardens and residential property boundaries.
The fence system can define restricted areas around railway facilities, utility sites, substations and other infrastructure projects.
Customized Service
As a professional guardrail manufacturer, we support size, shape & drawing customization with full-process in-house production. Our complete supporting services are listed below:
Service Item | Detailed Description |
Sample | Free product small samples |
MOQ | No fixed MOQ, order on demand |
Lead Time | 10-15 working days for standard products |
Export Packing | Customized packing: pearl foam padding + bubble wrap/carton for bundles; plywood case for special sizes |
Technical Support | Free design, drawings & installation videos |
It is a welded mesh fencing system made with two horizontal wires positioned on both sides of one vertical wire. This structure improves the rigidity of the fence panel.
The numbers indicate the wire diameters. A 656 panel uses two 6 mm horizontal wires and one 5 mm vertical wire. An 868 panel uses two 8 mm horizontal wires and one 6 mm vertical wire.
The appropriate configuration depends on the required fence height, installation environment and rigidity. Project drawings and site requirements should be reviewed before selection.
Double wire panels can be galvanized, powder coated, PVC coated or supplied with combined galvanizing and coating protection.
Matching posts, clips, clamp bars, brackets, bolts, nuts and post caps can be supplied as a complete fencing system.
Yes. Pedestrian gates, double swing gates and vehicle gates can be manufactured with matching mesh, color and hardware.
Please provide the fence height, total length, panel width, wire configuration, mesh opening, post type, surface finish, color and required gate dimensions.
