Galvanized Tubular Fence Black Steel Fence Panel for Residential

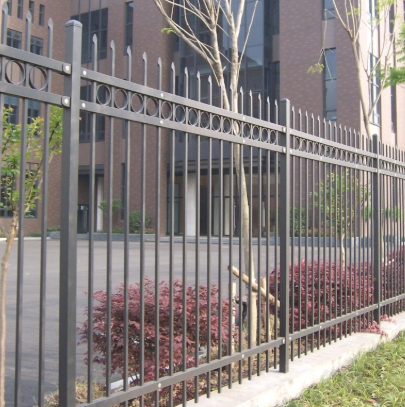

Overview of Galvanized Tubular Steel Fence Panels

Galvanized tubular fence panels represent a welded and assembled steel fencing solution designed for perimeter boundary and security isolation applications. Manufactured with hot-dip galvanized steel tubing, these black steel fence panels undergo a multi-stage surface treatment process to deliver corrosion resistance for outdoor installations. Each panel features a modular frame structure with vertical pickets and horizontal rails, produced under standardized workshop conditions to maintain consistent dimensions across batch orders.

These steel tubular fence systems address common procurement concerns in commercial construction and residential development, including installation time, long-term maintenance requirements, and material durability. The black powder-coated finish provides a uniform appearance suitable for various architectural styles, while the galvanized underlayer forms a metallurgical bond with the steel substrate to protect against rust formation from the inside out. Panels are pre-fabricated and shipped in section form, reducing on-site welding requirements and associated labor costs for project contractors.

Advantages of Black Steel Fence Panels

Galvanized Corrosion Protection with Measurable Performance

Hot-dip galvanization applied to these tubular fence panels conforms to ASTM A123 standards, producing a zinc coating that forms an alloy layer with the steel surface. This treatment results in a corrosion barrier suitable for outdoor exposure in temperate, coastal, and industrial atmospheric conditions. The zinc layer provides both barrier protection and cathodic protection, meaning scratched areas continue to receive electrochemical protection from surrounding zinc.

Modular Panel Design for Streamlined Installation

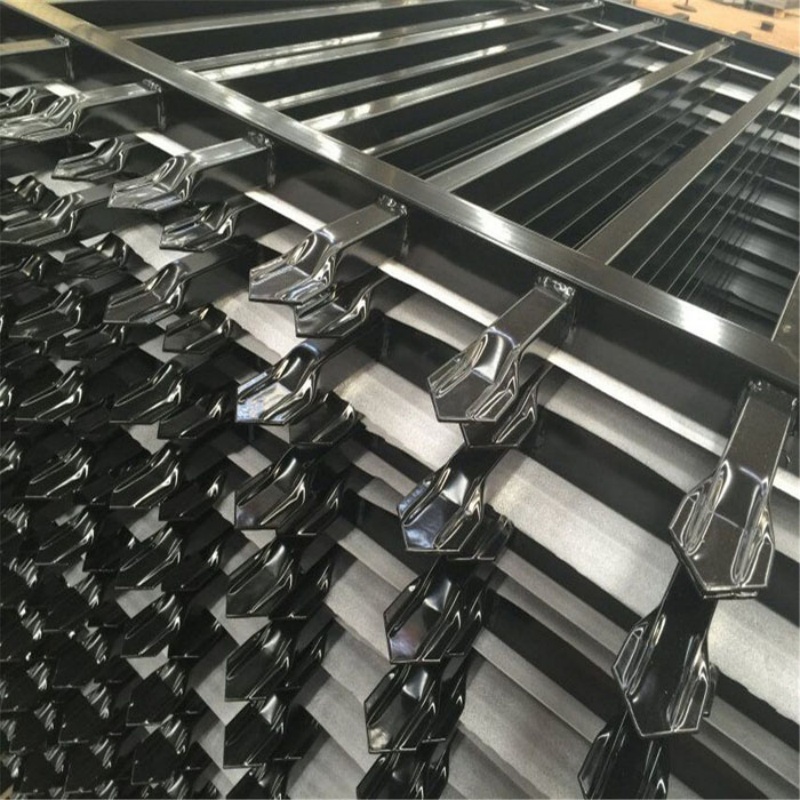

Each black steel fence panel arrives as a pre-assembled section, including vertical pickets welded to top and bottom horizontal rails. This modular format allows installation crews to mount panels directly to steel posts using bracket hardware, reducing on-site fabrication time. Standard panel widths align with common post spacing dimensions, enabling contractors to calculate material requirements directly from project perimeter measurements.

Structural Configuration for Perimeter Security

The vertical picket arrangement, combined with horizontal rail reinforcement, creates a rigid barrier structure. Picket spacing and rail placement are configured to deter unauthorized passage while maintaining visibility through the fence line. Steel post anchoring options include flange base mounting for concrete surfaces and embedded installation for ground setups, providing flexibility across different site conditions.

Technical Parameters of Galvanized Steel Fence Panels

Application Scenario of Steel Tubular Fence Systems

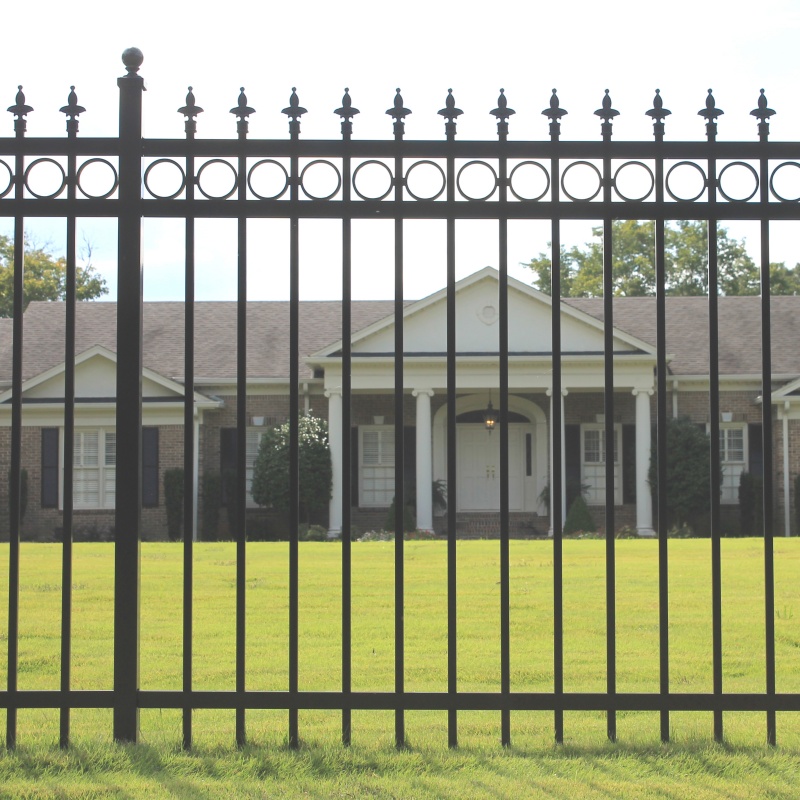

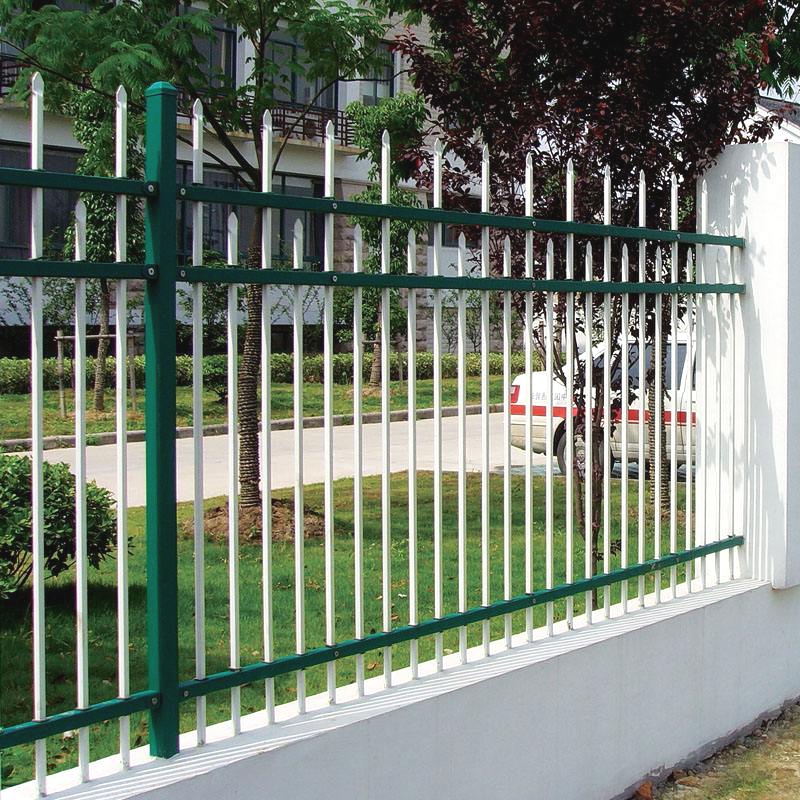

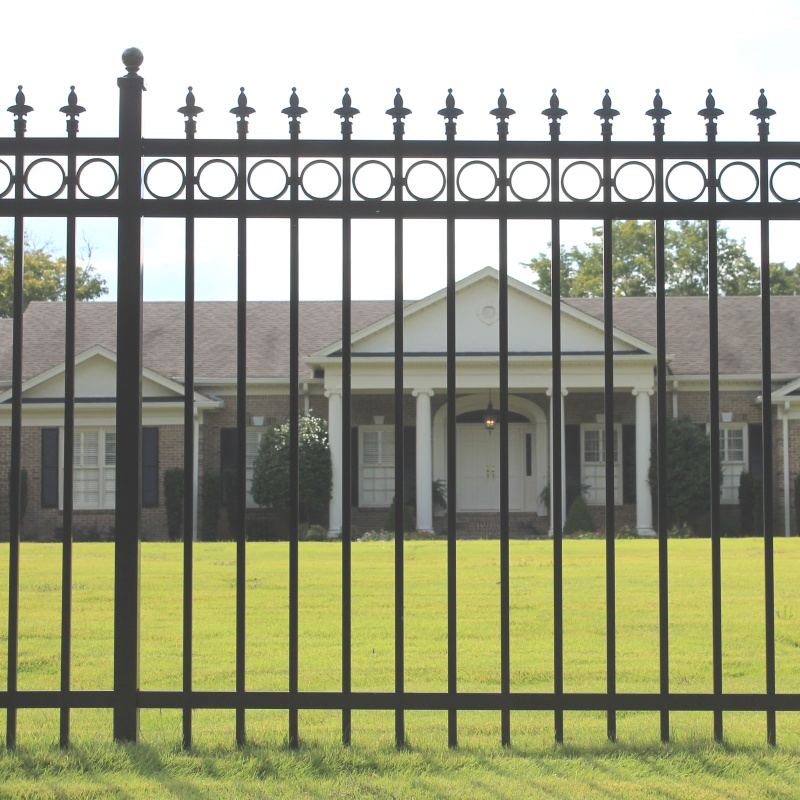

Residential Community Perimeters

Galvanized tubular fence installations serve as boundary enclosures for housing developments, gated communities, and residential compounds. The black finish complements modern architectural design, while the picket structure maintains visibility for security monitoring purposes. Standard heights ranging from 1.2m to 1.8m address typical residential privacy and safety requirements.

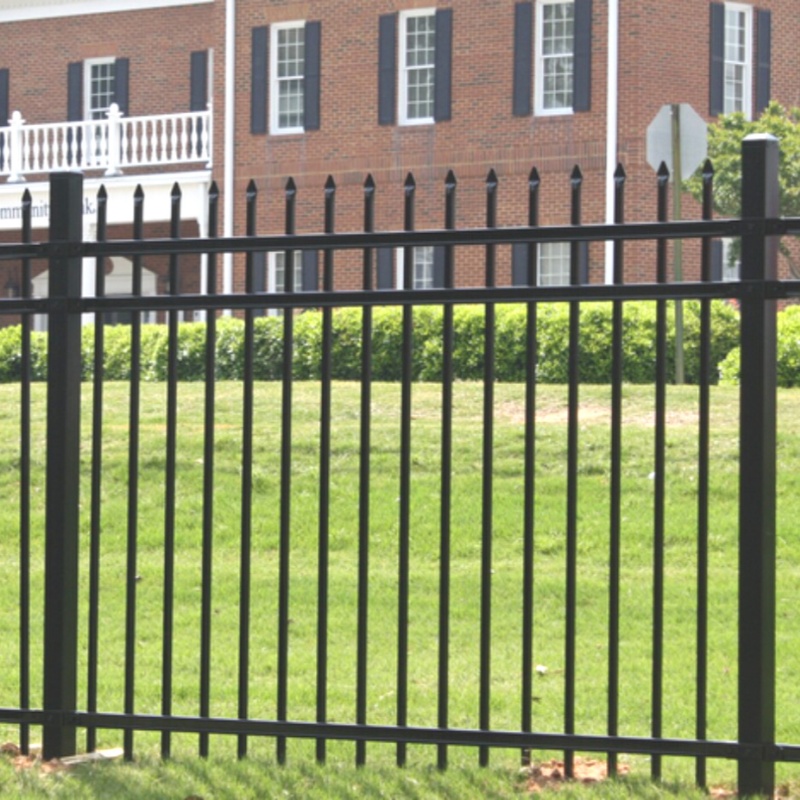

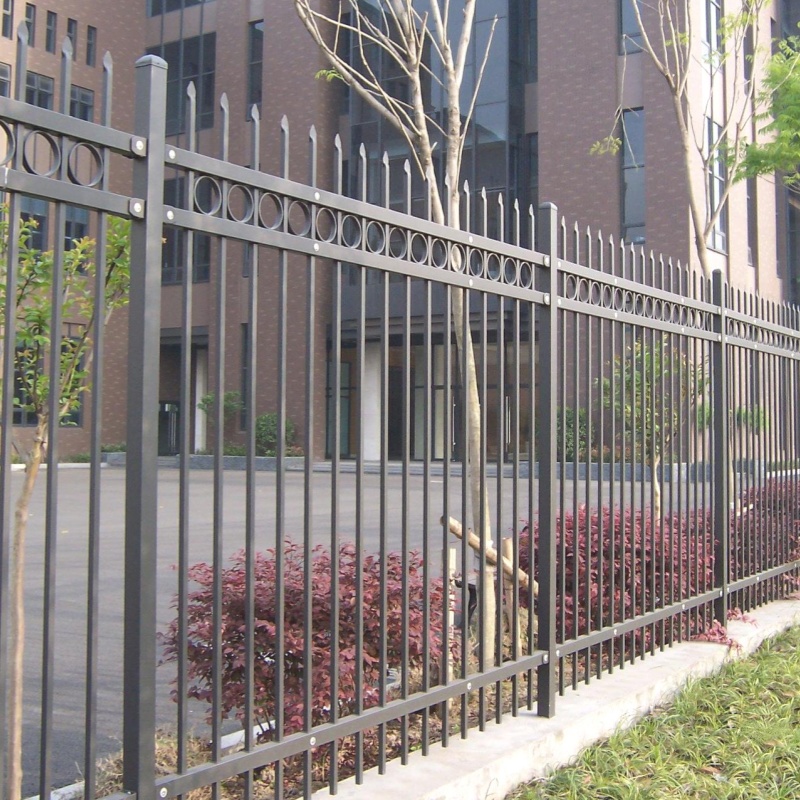

Commercial and Institutional Properties

Office parks, school campuses, healthcare facilities, and municipal buildings deploy these black steel fence panels for perimeter demarcation and access control. The uniform appearance supports professional property aesthetics, and the galvanized construction reduces ongoing maintenance expenditures for facility management teams.

Industrial and Logistics Sites

Factory perimeters, warehouse yards, and logistics centers use steel tubular fencing for secure enclosure of operational areas. Heights up to 2.5m, combined with thicker gauge options, provide the structural capacity required for industrial security applications. The corrosion-resistant finish withstands exposure to industrial dust and varying weather conditions.

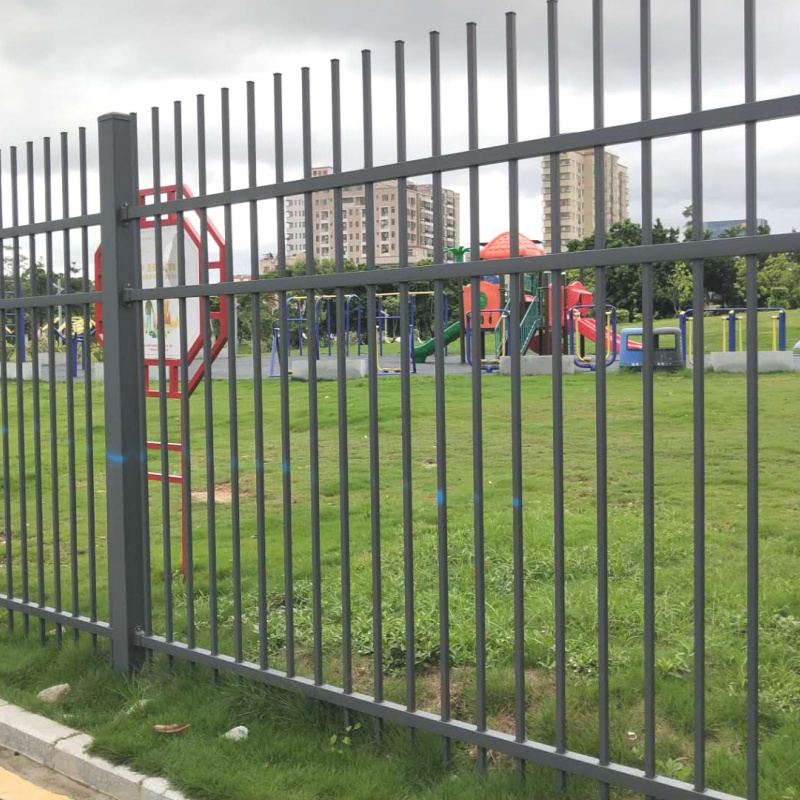

Public Space and Landscape Projects

Parks, recreational areas, green belts, and scenic zones incorporate galvanized tubular fences for protective barriers and boundary definition. The open picket design allows visual permeability while preventing unauthorized vehicle or pedestrian access to restricted landscape areas.

Customized Service for Galvanized Tubular Fence Orders

As a steel fence manufacturer with in-house production capacity, we support customization across dimensions, configurations, and finish specifications. Our team works from customer drawings or site measurement data to produce fence panels matching specific project requirements.

FAQ About Galvanized Tubular Fence Panels

What is the difference between hot-dip galvanized and electro-galvanized fence panels?

Hot-dip galvanization involves immersing steel components in molten zinc, creating a thick alloy-bonded coating suitable for heavy outdoor exposure. Electro-galvanization applies a thinner zinc layer through electrolysis, typically used for interior or mild environment applications. We recommend hot-dip galvanized panels for exterior perimeter fencing projects.

Can black steel fence panels be installed on sloped terrain?

Yes, our tubular fence panels accommodate sloped installations through adjustable mounting brackets and rackable panel designs. The degree of slope adaptability depends on the specific panel configuration and picket length. Our technical team can provide slope calculation guidance based on site survey data.

What is the typical lead time for a commercial order of galvanized tubular fencing?

Standard panel sizes typically ship within 10-15 working days from order confirmation. Custom dimensions, special colors, or large volume orders may require additional production time, which we confirm in writing during the quotation stage.

Do you provide installation guidance for contractors?

We supply installation drawings, written instructions, and video guides with each order. For large commercial projects, our technical team can provide remote consultation during the installation phase. We also offer sample panels for contractors to evaluate before placing full project orders.
