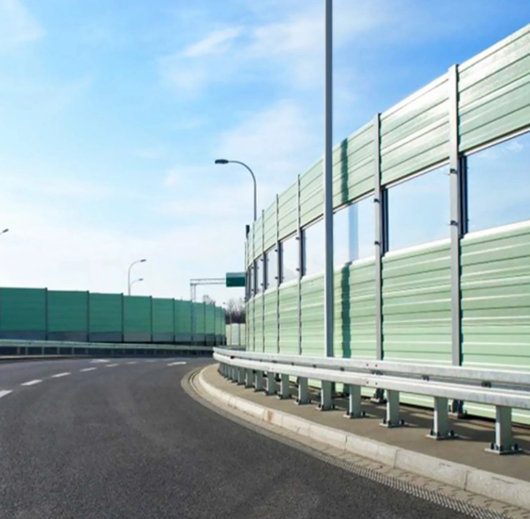

Highway Motorway Sound Barriers Noise Insulation Wall

Overview of Highway Motorway Sound Barriers

Construction Principle of Noise Insulation Wall

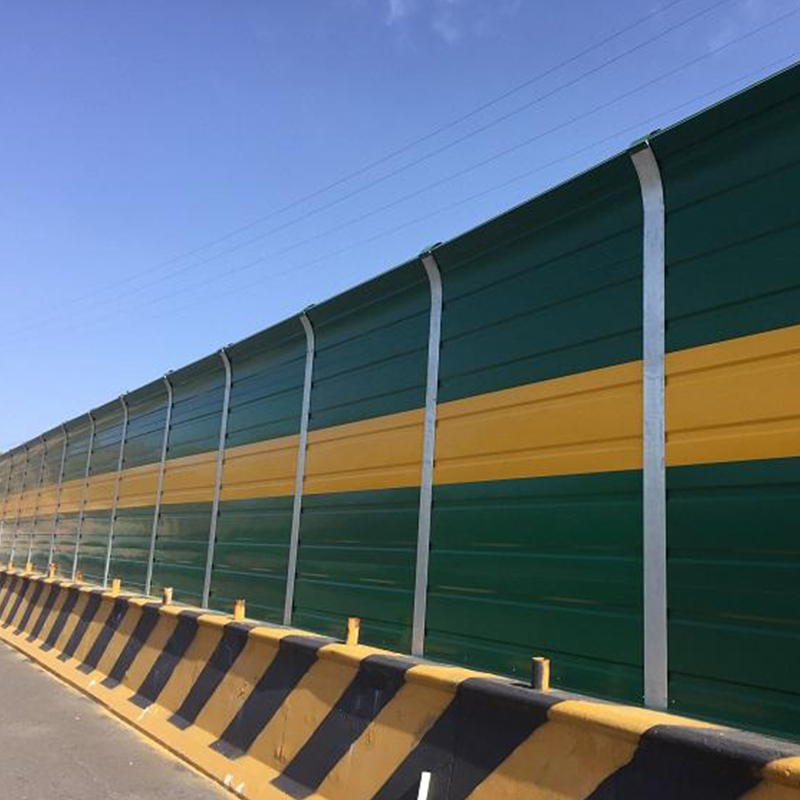

Highway motorway sound barriers are prefabricated acoustic structures designed to intercept and absorb traffic noise propagation between roadways and adjacent receivers. Each barrier unit consists of sound-absorbing panels and sound-insulating panels mounted on steel support posts, forming a continuous vertical acoustic shield. The system operates on two acoustic mechanisms: sound insulation through mass law effect of dense panel materials, and sound absorption through porous infill materials that convert sound energy into heat through friction within fiber structures.

Panel Composition of Acoustic Fence

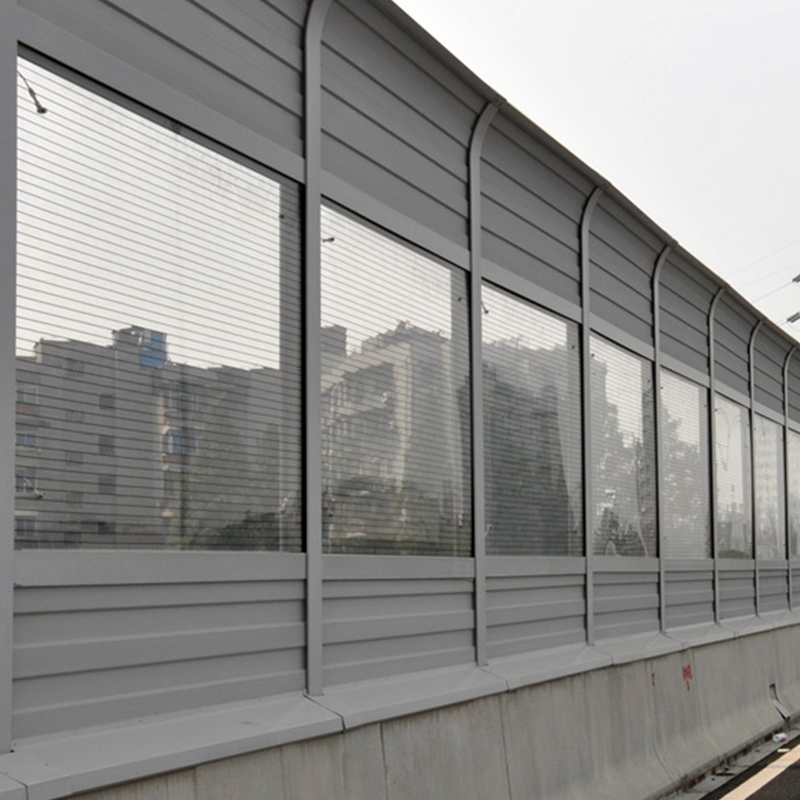

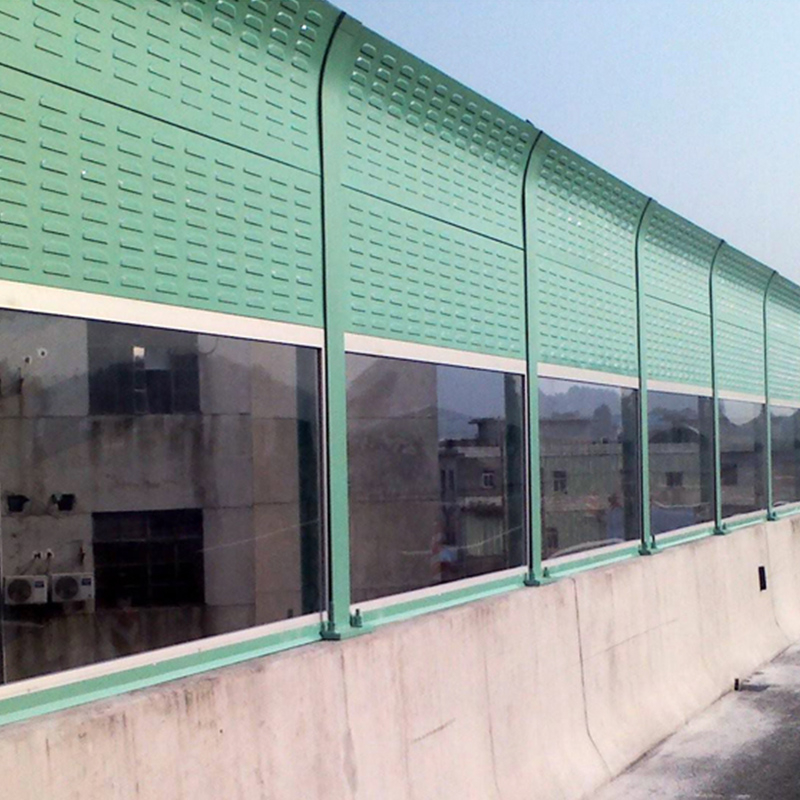

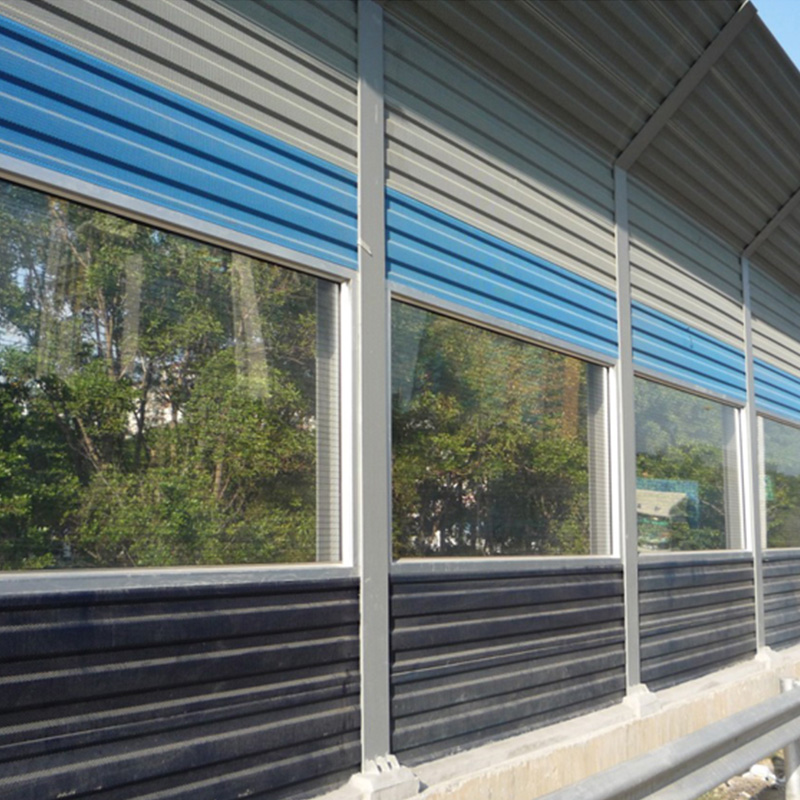

The noise insulation wall combines metal face sheets with internal acoustic infill. Metal panels are fabricated from galvanized steel sheet, aluminum alloy sheet, or color-coated steel sheet, with perforated surfaces on the noise-source side to allow sound wave entry. Internal cavities are filled with centrifugal glass wool or rock wool as sound-absorbing media. Transparent sections using PC (polycarbonate) sheet, acrylic sheet, or laminated tempered glass can be integrated for visual permeability, maintaining driver sightlines and daylight access for nearby structures.

Advantages of Noise Insulation Wall

Measured Acoustic Performance Data

Each highway sound barrier panel undergoes acoustic testing in accordance with GB/T 19889 and ASTM E90 standards. The weighted sound reduction index (Rw) ranges from 25 dB to 35 dB depending on panel thickness and material configuration. Sound absorption coefficient (NRC) values reach 0.60 to 0.80 for glass wool infilled panels. Third-party test reports are available upon request for commercial procurement evaluation.

Weather Resistance & Durability Specifications

Metal panels receive hot-dip galvanizing treatment followed by electrostatic powder coating or fluorocarbon spraying, providing corrosion resistance suitable for outdoor exposure across temperature ranges from -40°C to 80°C. Galvanized coating thickness meets a minimum of 80 μm per ISO 1461 standard. Support posts are manufactured from H-section steel with equivalent corrosion protection, ensuring structural stability under wind loads up to 0.6 kPa.

Modular Installation for Highway Projects

The barrier system employs a modular panel-and-post design that enables sequential installation along roadway alignments. Standard panel dimensions of 2500 mm width × 500 mm height allow two workers to position each unit without heavy lifting equipment. Post spacing of 2000 mm to 2500 mm on center accommodates most highway median and roadside configurations, reducing on-site labor requirements compared to cast-in-place alternatives.

Technical Parameters of Highway Sound Barriers

Application Scenario of Motorway Noise Barriers

Transportation Infrastructure Projects

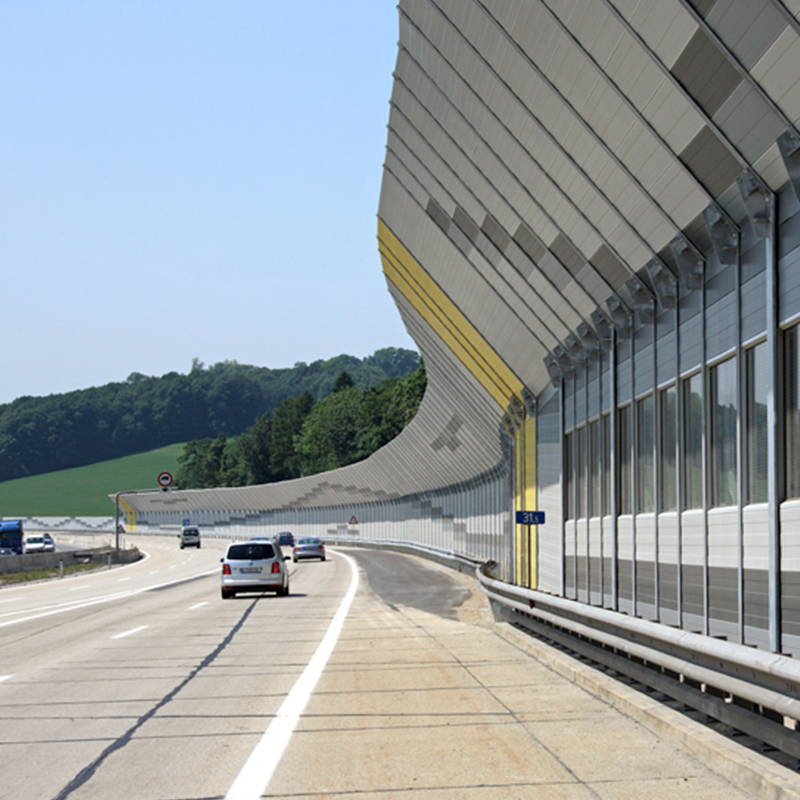

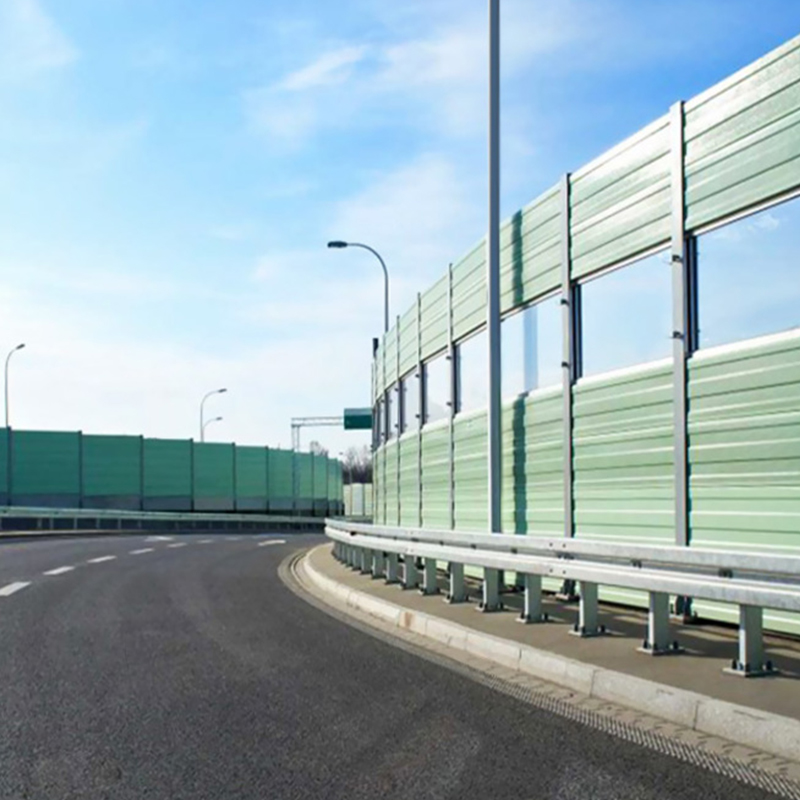

Motorway sound barriers serve as standard noise mitigation measures along highways, expressways, viaducts, urban light rail lines, and subway elevated sections. They are installed along roadway edges where noise-sensitive receptors — residential buildings, hospitals, schools — fall within calculated noise impact zones defined by local environmental regulations.

Industrial & Residential Noise Control

Beyond transportation applications, the noise insulation wall system deploys around factory perimeters, power plants, and industrial zones to contain equipment noise toward boundary limits set by occupational health standards. Residential communities and school campuses also deploy these barriers along adjacent roadways to maintain indoor ambient noise levels below 55 dB(A) daytime thresholds.

Customized Service for Acoustic Fence Projects

FAQ About Highway Sound Barriers

What is the typical lead time for a 500-meter highway sound barrier order?

For standard configurations, production completes within 10 to 15 working days after order confirmation. Custom colors or special dimensions may extend the lead time by 3 to 5 additional working days.

Can the barrier system be installed on existing concrete barriers?

Yes, the post base design accommodates both new foundation installations and retrofitting onto existing concrete Jersey barriers or bridge parapets through bolted connection plates.

What acoustic testing documentation is available for enterprise customers?

Each production batch can be supplied with third-party acoustic test reports issued by accredited laboratories, including Rw (weighted sound reduction index) and NRC (noise reduction coefficient) values measured per ISO and ASTM standards.

Are transparent PC panels available in different thicknesses?

PC transparent panels are offered in 8mm, 10mm, and 12mm thicknesses, with UV-protective coating on both surfaces to resist yellowing under prolonged sun exposure.
