Hot Dip Galvanized Anti Slip Industrial Platform Steel Grating

The hot-dip galvanized anti-slip industrial platform steel grating is manufactured from parallel load-bearing bars connected by cross bars at specified intervals. Its open-grid structure supports drainage, ventilation, light transmission and the removal of loose debris, making it suitable for demanding industrial flooring applications.

Serrated bearing bars are available for locations where water, oil, mud or production residue may increase the risk of slipping. The raised serrations provide additional surface grip compared with conventional smooth bearing bars, although appropriate footwear and site safety procedures remain necessary.

After welding and fabrication, the complete steel grating panel can be hot-dip galvanized. The zinc coating covers exposed steel surfaces and provides corrosion protection for outdoor, humid and industrial environments. Untreated black steel, painted steel and stainless steel options may also be supplied according to project requirements.

Bearing bar height, thickness and spacing determine the load-carrying characteristics of the grating. Cross-bar spacing, panel dimensions, support span and edge banding also influence performance. These parameters must be selected according to the expected pedestrian, equipment or maintenance load.

Custom fabrication services include panel cutting, notches, openings, toe plates, kick plates and edge banding. Suitable fixing clips can be supplied to secure the industrial steel grating to supporting beams without unnecessary on-site welding.

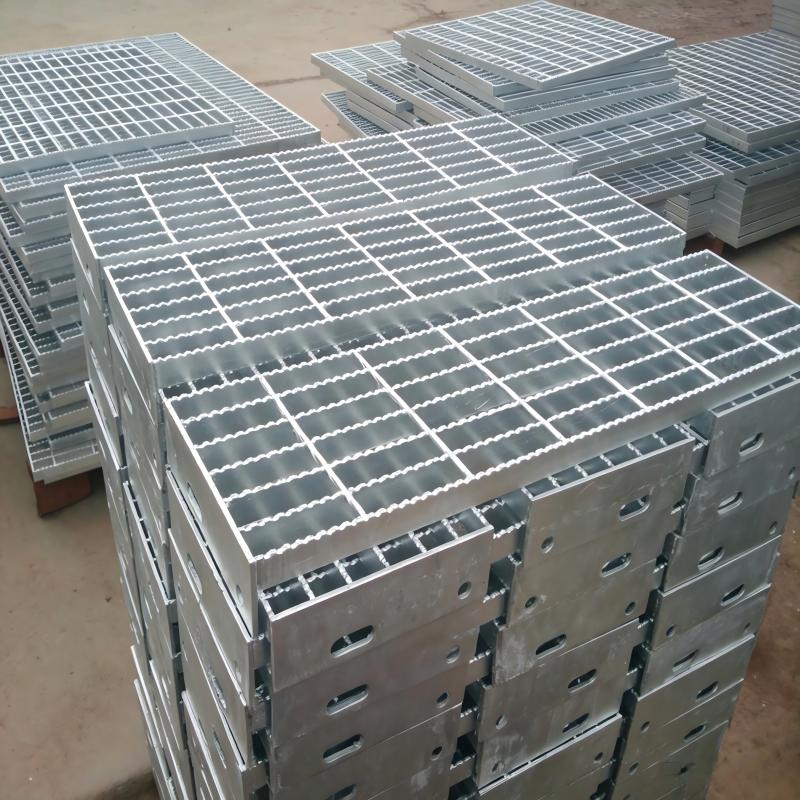

Serrated Anti-Slip Surface

The serrated bearing bars provide additional grip for industrial platforms exposed to moisture, oil and other materials that may create slippery conditions.

Hot-Dip Galvanized Protection

The completed steel grating panels can be immersed in molten zinc to create a protective coating over the fabricated steel structure.

Efficient Drainage and Ventilation

The open-grid design allows water, air, light and loose debris to pass through instead of accumulating on the platform surface.

Custom Load-Bearing Configuration

Bearing bar depth, thickness, spacing and panel support span can be selected according to the required loading conditions.

Project-Specific Fabrication

Panels can be cut and shaped around pipes, columns, equipment bases and other structural features according to approved drawings.

Convenient Modular Installation

Individual grating panels can be installed with clips or other specified fasteners, simplifying inspection, maintenance and section replacement.

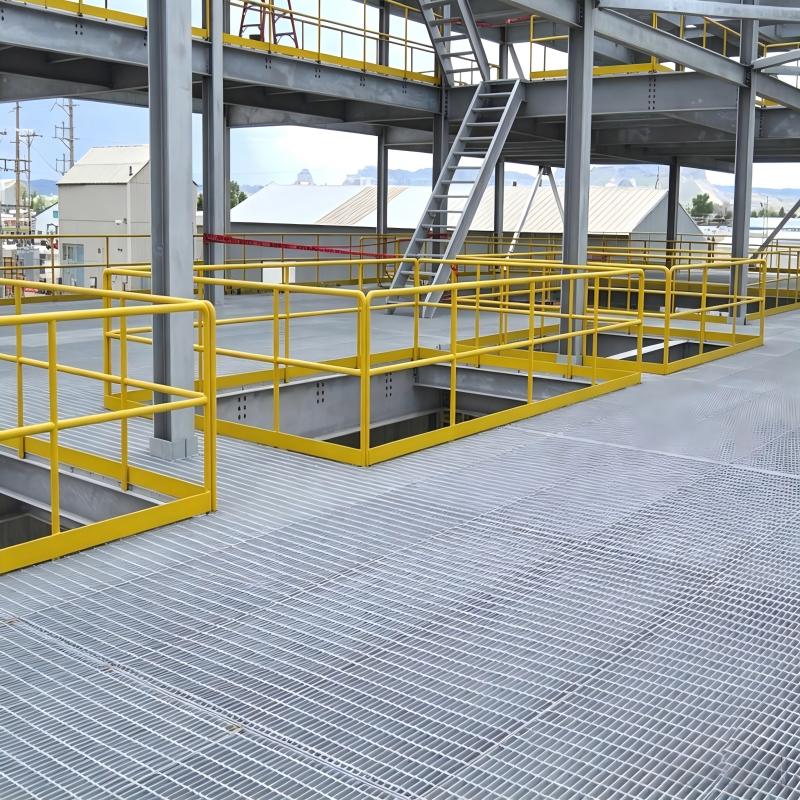

Industrial Operating Platforms

Galvanized steel grating can provide elevated working surfaces around machinery, process equipment and production lines.

Factory Walkways

The open-grid panels are suitable for pedestrian routes connecting different sections of manufacturing and processing facilities.

Oil and Chemical Facilities

Serrated grating may be selected for locations where liquids or production residue could create slippery walking surfaces. Material compatibility must be reviewed for each environment.

Power Plants

Industrial platform steel grating can be used around boilers, turbines, piping systems and maintenance access structures.

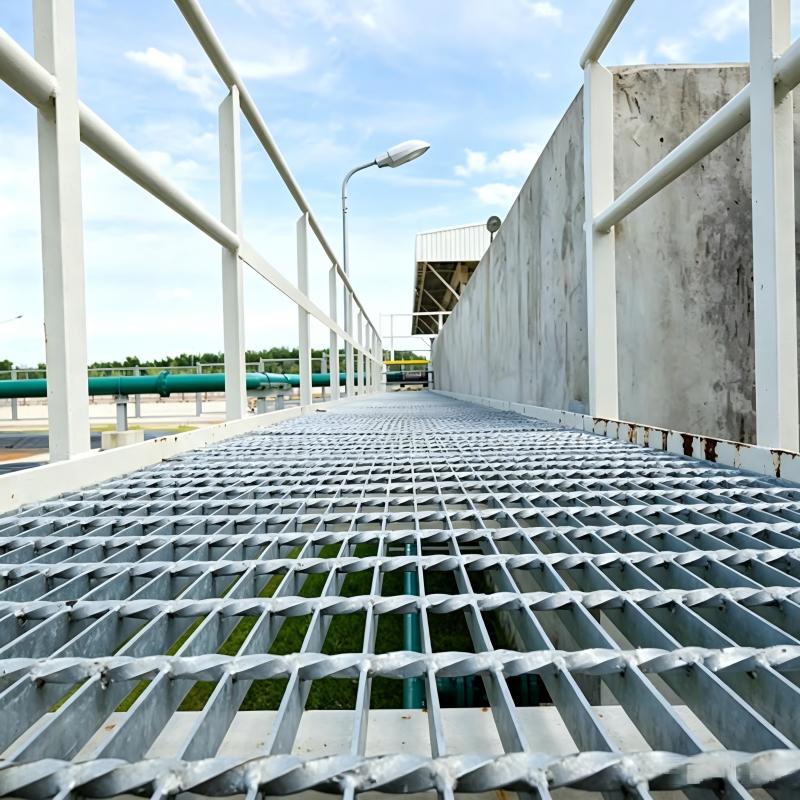

Wastewater Treatment Plants

The drainage-friendly structure is suitable for walkways and platforms exposed to water, subject to the required material and coating specification.

Mining and Material Handling Facilities

Heavy-duty configurations can be designed for conveyor platforms, screening equipment and maintenance access areas.

Warehouses and Logistics Facilities

Steel grating can be installed on mezzanines, access platforms and service walkways according to the required loading conditions.

Marine and Port Facilities

Galvanized grating may be used for docks and port platforms after evaluating moisture, salt exposure and project-specific corrosion requirements.

As a professional guardrail manufacturer, we support size, shape & drawing customization with full-process in-house production. Our complete supporting services are listed below:

Frequently Asked Questions

1. What makes the steel grating anti-slip?

The upper edges of the bearing bars contain serrations that provide additional contact and traction underfoot compared with a smooth surface.

2. Where is serrated steel grating commonly used?

It is commonly considered for industrial platforms, walkways, catwalks and maintenance areas where water, oil or loose residue may be present.

3. What is the purpose of hot-dip galvanizing?

Hot-dip galvanizing applies a bonded zinc coating to the fabricated steel grating, helping protect the underlying steel from corrosion.

4. Can the panel dimensions be customized?

Yes. Panel length, width, edge treatment, cut-outs and notches can be fabricated according to approved project drawings.

5. How is the required load capacity determined?

Load capacity depends on the bearing bar height, thickness, spacing, support span and load type. These details must be reviewed before selecting a grating specification.
