Product Description

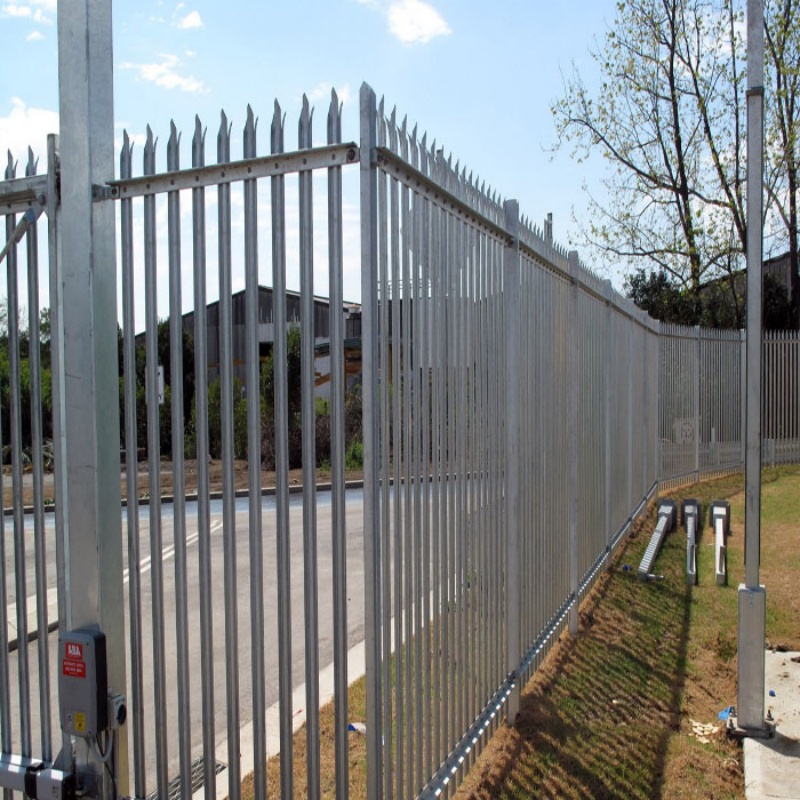

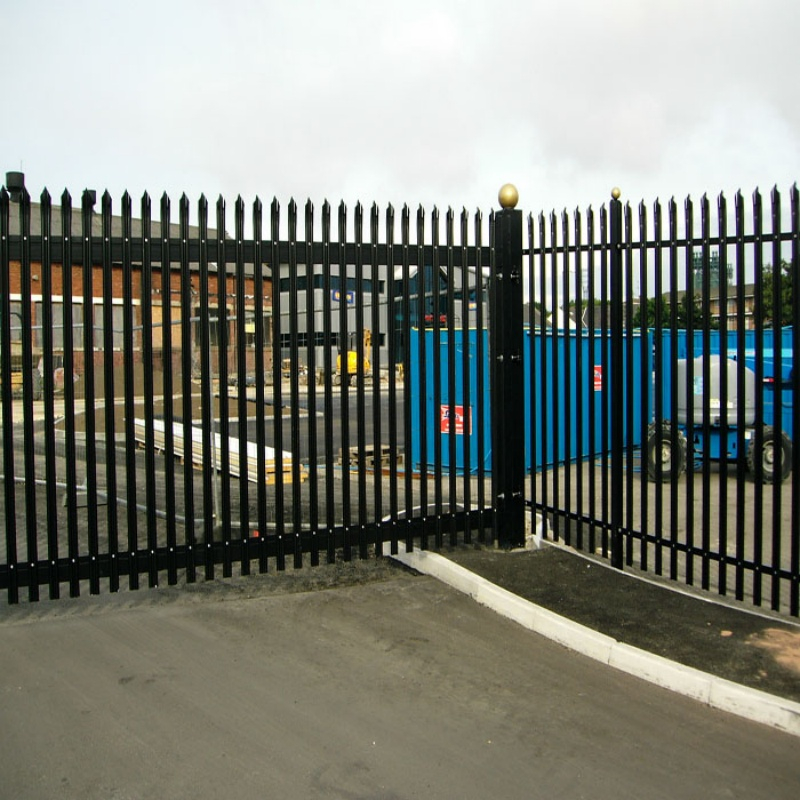

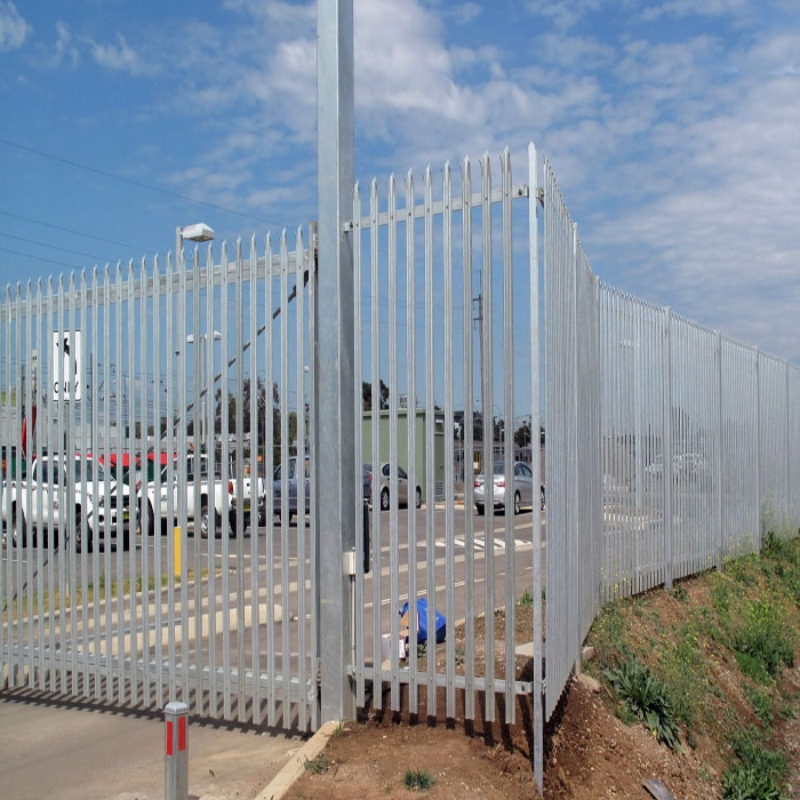

The W-type galvanized palisade fence is a steel perimeter fencing system designed for warehouse, commercial and industrial security applications. Its closely spaced vertical pales form a highly visible boundary while retaining an open design that supports observation through the fence.

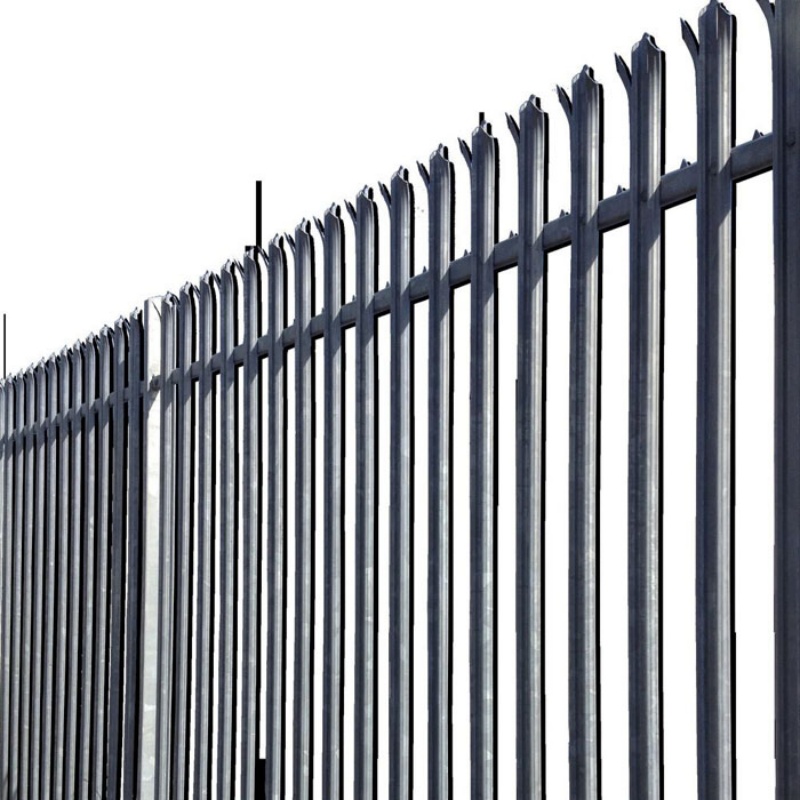

Each panel consists of roll-formed W-section pales attached to horizontal steel rails. The rails are connected to supporting posts with fishplates, bolts and other project-specific fittings. Compared with flat profiles, the corrugated W-shaped pale provides additional structural rigidity without creating a solid visual barrier.

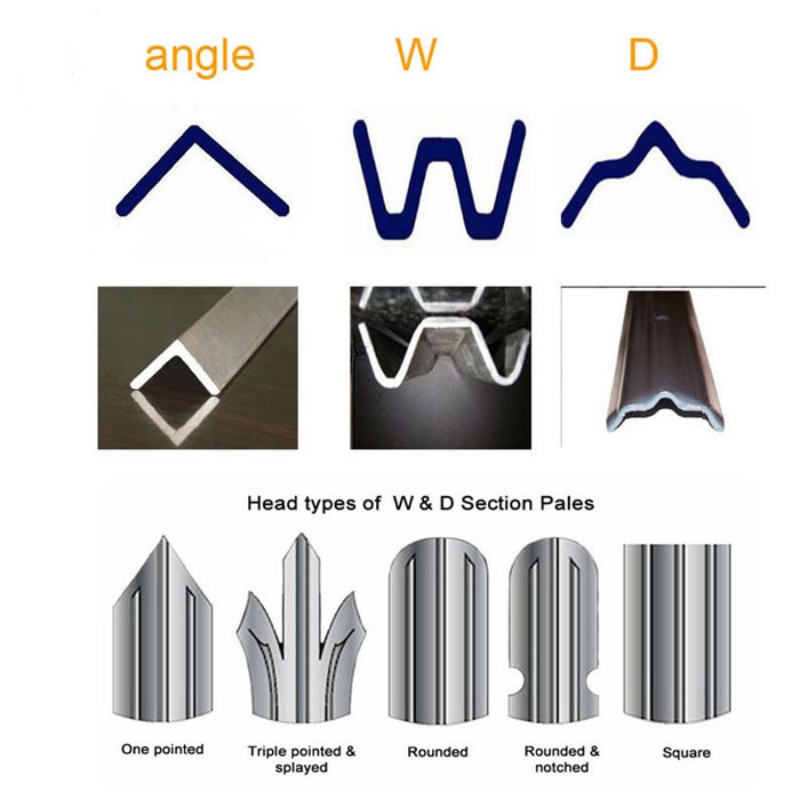

Different pale-top configurations are available, including rounded, single-pointed, triple-pointed, straight and notched designs. The appropriate option should be selected according to the required security level, site risk assessment and local safety regulations.
Hot-dip galvanizing protects the steel components against outdoor corrosion. A powder-coated finish can be applied over galvanized steel when additional surface protection or an architectural color is required. Common colors include green, black, gray and customized RAL shades.

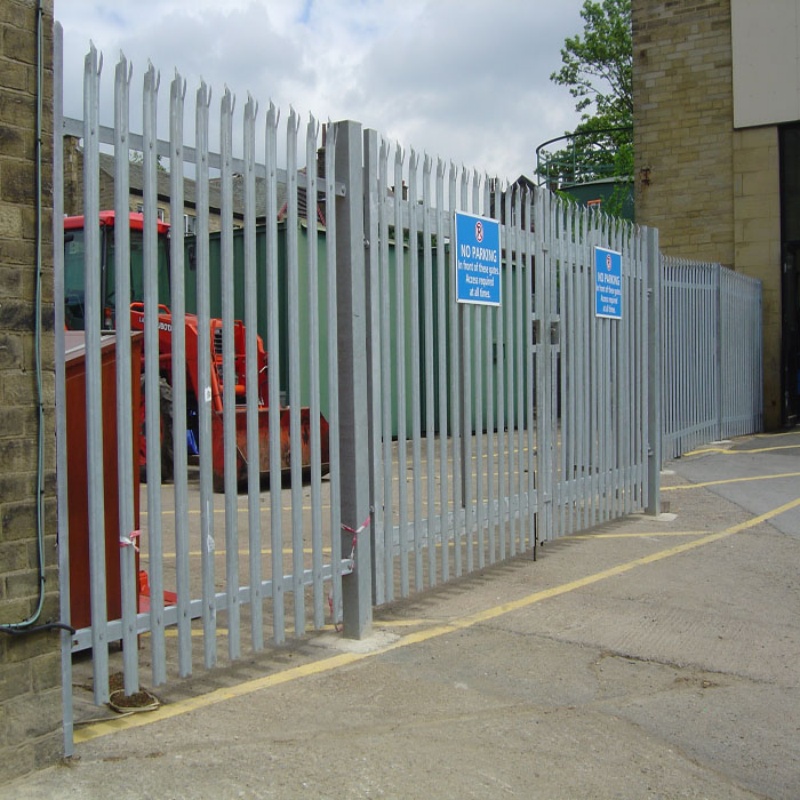

Fence height, panel width, pale dimensions, post spacing and installation method can be produced according to approved project drawings. Matching pedestrian gates, double-leaf vehicle gates and sliding gates can also be manufactured to create a coordinated warehouse perimeter system.
Product Advantages
The corrugated W profile increases the stiffness of each vertical pale and creates a robust physical boundary for industrial properties.
Closely arranged vertical pales and selectable top profiles help discourage unauthorized climbing while maintaining visibility across the perimeter.
Hot-dip galvanizing protects the fence components against outdoor moisture. Optional powder coating provides additional color and surface protection.
Pales, rails, posts and connection fittings are supplied as compatible components, simplifying transportation, installation and replacement.
Posts can be embedded in concrete foundations or supplied with welded base plates for installation on suitable concrete surfaces.
Fence height, pale thickness, post profile, top style, color and gate configuration can be adjusted to match warehouse security requirements.
Technical Parameters
Pale Thickness | 1.5mm-3.0mm ,customizable |
Fence Height | 1.2m-3.0m ,customizable |
Pale Top Type | W or D type |
Vertical pole specifications | Common 19 19/25 25mm, can be customized according to needs |
Surface Treatment | Hot dip galvanized,Powder coating |
Service Life | 15–25 years under outdoor environment |
Application Scenario
The W-type palisade fence creates a visible boundary around warehouses, loading areas and inventory storage facilities.
It can protect production areas, equipment compounds, staff entrances and restricted operational zones.
The galvanized palisade fence is suitable for large logistics sites requiring controlled vehicle and pedestrian access.
Steel palisade fencing can secure construction materials, machinery, vehicles and other assets stored outdoors.
The system can be installed around office compounds, retail warehouses and other commercial premises requiring perimeter separation.
Customized palisade fencing may be used around substations, telecommunications facilities and utility compounds according to project requirements.
The fence can define parking compounds, fleet depots and vehicle holding areas while maintaining visibility through the perimeter.
Customized Service
As a professional guardrail manufacturer, we support size, shape & drawing customization with full-process in-house production. Our complete supporting services are listed below:
Service Item | Detailed Description |
Sample | Free product small samples |
MOQ | No fixed MOQ, order on demand |
Lead Time | 10-15 working days for standard products |
Export Packing | Customized packing: pearl foam padding + bubble wrap/carton for bundles; plywood case for special sizes |
Technical Support | Free design, drawings & installation videos |
It is a steel perimeter fence constructed from corrugated W-section vertical pales connected to horizontal rails and supporting posts.
The formed W shape increases the rigidity of the steel pale and creates a prominent physical perimeter barrier.
Common project heights range from approximately 1.8 to 3.6 meters. Other heights can be manufactured according to approved specifications.
Available options include rounded, single-pointed, triple-pointed, straight and notched tops. Selection should consider security needs and local safety requirements.
Surface treatments can be customized to meet your project requirements. Hot-dip galvanizing is one available option, and powder coating can also be applied on top of the galvanized finish if needed.
